SPECIFICATION

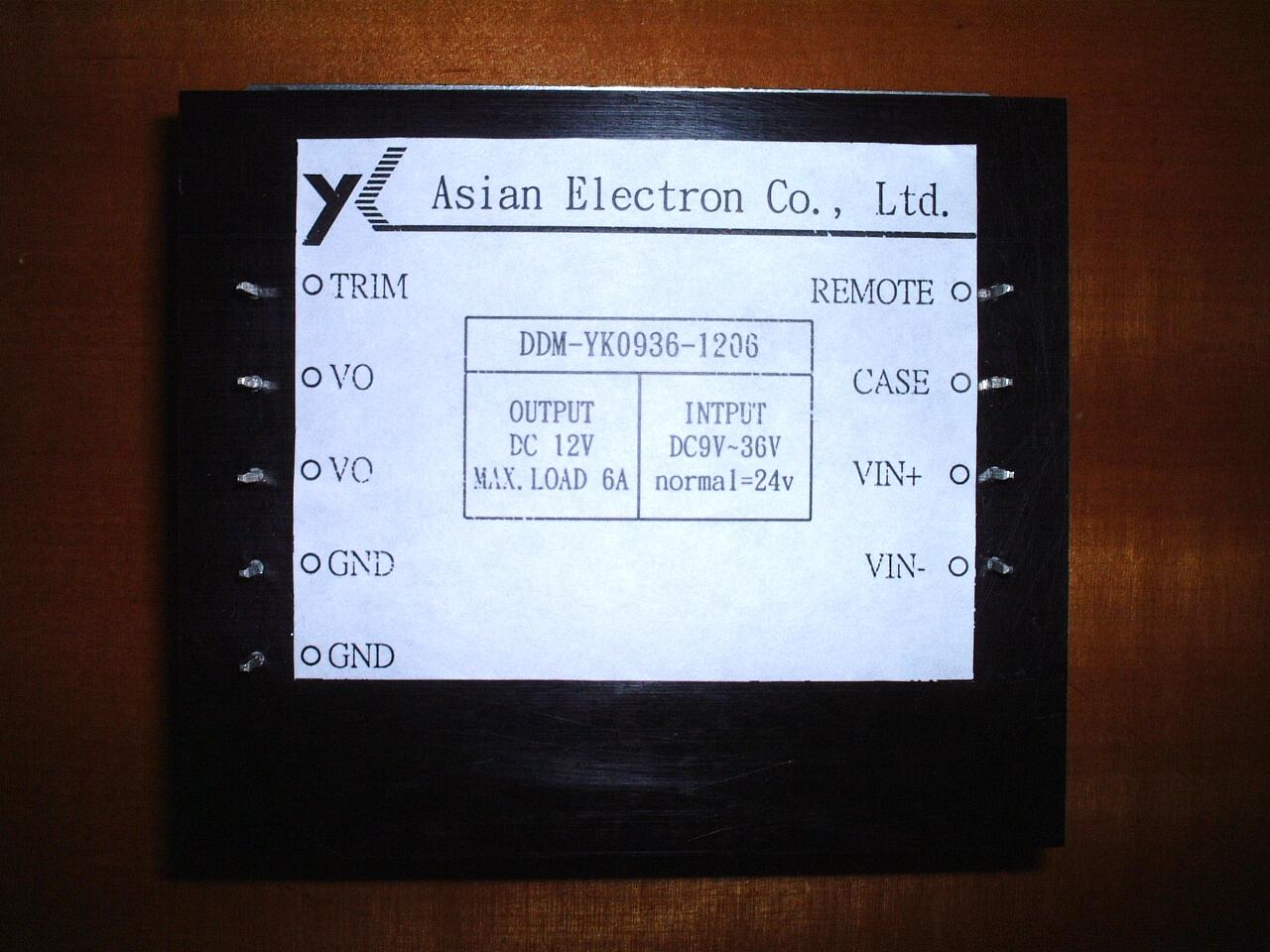

MODEL: YK-DD-0936-1206 DC to DC POWER SUPPLY

1.        INPUT :

1.1  Input Voltage:            DC 9V to 36V  Normal = 24V

1.2  Input Current:            4.1A at 24Vdc @F.L

2.        OUTPUT :

2.1  Output Voltage & Current:

TOTAL POWER :72 W

Note 1:  Ripple & Noise bandwidth is from DC to 20Mhz.

   3.   EFFICIENCY :  75% min. at 24Vdc input @F.L

4.   PROTECTION

4.1        Short Circuit Protection

Output Short GND Terminal will not damage the Power Supply will turn-off. Power Reset Turn-ON.

4.2        Over Voltage Protection :

    +12V Limits at 14.5V - 17V.

  4.3  Over Current Limits : 125% ~ 150%

  5.   Remote ON/OFF :

      ON(Enable)=Open

      OFF(Disable)=Short , @Vin

6.   GENERAL DESCRIPTION

  6.1  Operation Temperature:      -20  -  +60 Degree

  6.2  Storage Temperature:        -40  -  +105 Degree

  6.3  Operation Humidity:         5%  -  90%

  6.4  Cooling:                   Free air cooling

  6.5  SIZE                   100*100*35(L*W*H)

7.            PIN ASSIGNMENT :
