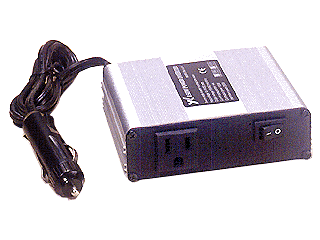

YK-S1215/E, YK-S2415/E (150Watts Modified Sine Wave Inverter )

¡@

Type

spec.

YK-S1215/E
YK-S2415/E
150W

Output Wave form

Modified sine wave

Output Voltage 110V

220V

115VAC rms
230VAC rms

Regulation

-10% ~ +5%

DC input Voltage 12V

24V

10 ~ 15V
20 ~ 30V

Low battery alarm 12V

24V

10.7V
21.5V

Low battery shut-down 12V

24V

10V
20V

Efficiency

90%

Frequency +-1% 115V

230V

60Hz
50Hz

No load draw 12V
24V

250mA
130mA

Surge capability

225W

Over thermal protection

Yes

Cooling fan

No

Over load protection

Yes

Input shut circuit protect

Yes

Dimension (L x W x H)

125 x 96 x 35mm

Net weight

0.4kgs

Car cigarette lighter adapter

Yes

Remote control

Yes

Order Sheet
